    KC5032P115.000P3GJ00,低相噪差分晶振,京瓷石英晶體振蕩器

  • 編號：4172936
  • 頻率：115MHz
  • 尺寸：5.0×3.2mm
  • RoHS
  • RoHS2
KC5032P-P3有源晶振,KC5032P115.000P3GJ00晶振,低相位噪聲晶振,LV-PECL差分晶體,京瓷石英晶體振蕩器,日本進口晶振,頻率115MHz,電壓3.3V,頻率穩定性50ppm,工作溫度-40~85°C,5032mm晶振,無線通訊設備晶振,計算機電腦晶...


KC5032P115.000P3GJ00,低相噪差分晶振,京瓷石英晶體振蕩器 ,KC5032P-P3有源晶振,KC5032P115.000P3GJ00晶振,低相位噪聲晶振,LV-PECL差分晶體,京瓷石英晶體振蕩器,日本進口晶振,頻率115MHz,電壓3.3V,頻率穩定性50ppm,工作溫度-40~85°C,5032mm晶振,無線通訊設備晶振,計算機電腦晶振,智能手機晶振,醫療設備晶振.
KC5032P115.000P3GJ00,低相噪差分晶振,京瓷石英晶體振蕩器 特點：
●小型陶瓷封裝類型
●接縫密封可靠性高
●LV-PECL輸出
●電源電壓VCC=3.3V
●±25×10 - 6可以應對

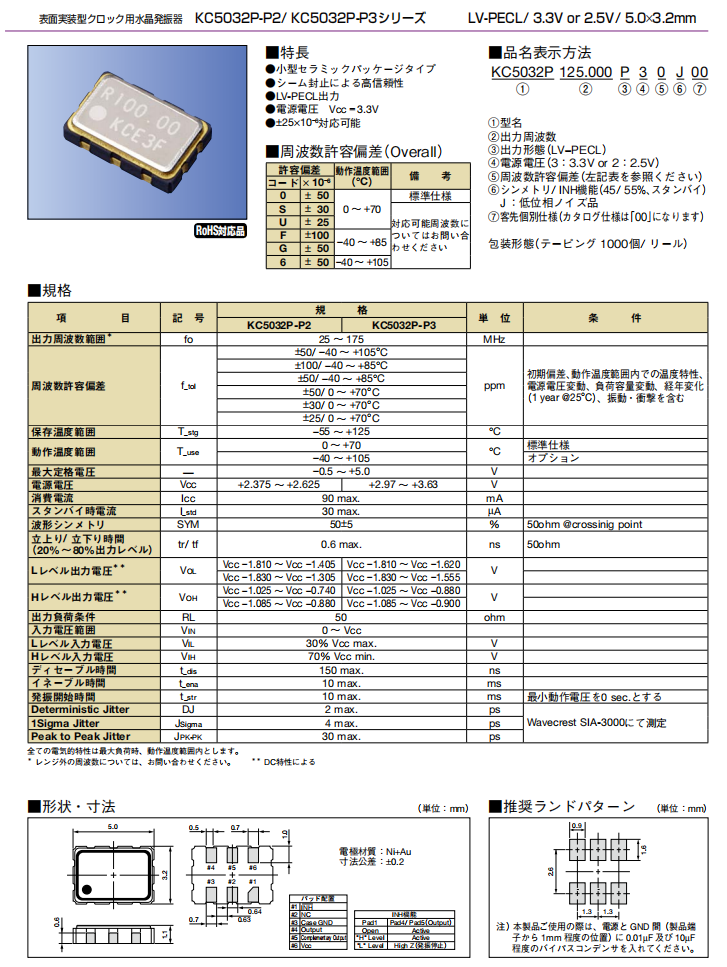

KC5032P115.000P3GJ00,低相噪差分晶振,京瓷石英晶體振蕩器參數表
項目 符號 規格說明 條件
額定頻率 f_nom 115MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 Vcc 3.3V
儲存溫度 T_stg -55℃~+125℃ 裸存
工作溫度 T_use -40℃~ +85℃
頻率公差（標準） f_tol ±50 ppm +25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電流消耗 ICC 90mA Max
待機電流 I_std 30μA Max
對稱性（占空比） SYM
50±5%
 50ohm @crossing point
H電平輸出電壓 VOH
VCC −1.025V
~VCC −0.880V

VCC −1.085V ~ VCC −0.900V
L電平輸出電壓 VOL
VCC −1.810V ~ VCC −1.620V

VCC −1.830V
~VCC −1.555V
輸出負載 RL 50Ω HCSL  Output
輸入電壓 VIH 70%Vcc Min OE terminal
VIL 30%Vcc Max
上升下降時間 tr/tf 0.6ns Max 100ohm
起始時間 t str 10ms Max 最小工作電壓為0sec . 10ms
確定性抖動 DJ 2ps Max Measured with Wavecrest SIA-3000
1 Sigma 抖動 JSigma 4ps Max
峰對峰抖動 JPK-PK 30ps Max

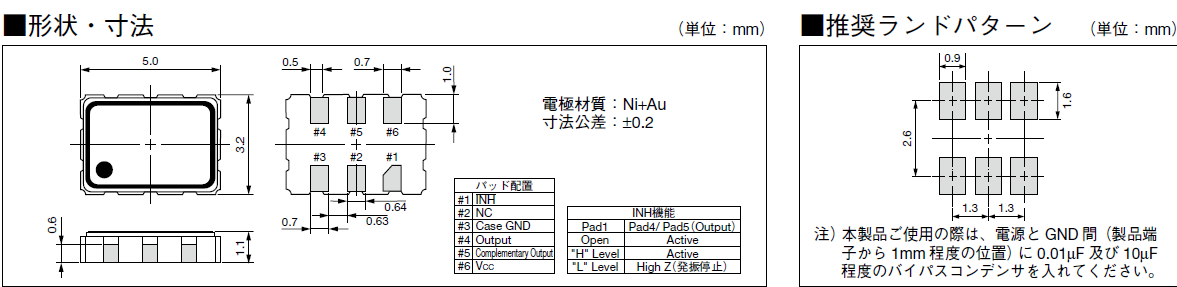

KC5032P115.000P3GJ00,低相噪差分晶振,京瓷石英晶體振蕩器 尺寸圖
