更多>>瑞斯克這款3.3V時鐘晶體振蕩器CE3390-25.000提供非常低的抖動相位
來源:http://konuaer.com 作者:ikis 2023年04月25
瑞斯克這款3.3V時鐘晶體振蕩器CE3390-25.000提供非常低的抖動相位,Crystek Crystals Corporation has worked with Chip Set manufactures to develop frequency control solutions that are compatible with the specific Chip Set. Crystek has assigned specific part numbers to these qualified designs. As with all design work it is sometimes necessary to alter the frequency for a customer specific application and the engineering team at Crystek is available to assist with crystal design modifications.
Crystek是一家擁有先進生產技術和高端儀器設備的知名品牌制造商,主要向全球各地提供性能優越具有成本效益的SPXO有源晶振產品線,Crystek Crystals公司與芯片組制造商合作開發與特定芯片組兼容的頻率控制解決方案。Crystek為這些合格的設計分配了特定的零件編號。與所有設計工作一樣,有時需要為客戶特定的應用改變頻率,Crystek的工程團隊可以協助晶體設計修改。
Crystek是一家擁有先進生產技術和高端儀器設備的知名品牌制造商,主要向全球各地提供性能優越具有成本效益的SPXO有源晶振產品線,Crystek Crystals公司與芯片組制造商合作開發與特定芯片組兼容的頻率控制解決方案。Crystek為這些合格的設計分配了特定的零件編號。與所有設計工作一樣,有時需要為客戶特定的應用改變頻率,Crystek的工程團隊可以協助晶體設計修改。
Manufacturer Part Number原廠代碼 | Manufacturer品牌 | Series型號 | Part Status | Type 類型 | Frequency 頻率 | Frequency Stability頻率穩定度 | Operating Temperature 工作溫度 |
CE3290-4.000 | CRYSTEK晶振 | C3290 | Active | XO (Standard) | 4MHz | ±100ppm | -40°C ~ 85°C |
CE3290-40.000 | CRYSTEK晶振 | C3290 | Active | XO (Standard) | 40MHz | ±100ppm | -40°C ~ 85°C |
CE3290-6.176 | CRYSTEK晶振 | C3290 | Active | XO (Standard) | 6.176MHz | ±100ppm | -40°C ~ 85°C |
CE3290-7.372800 | CRYSTEK晶振 | C3290 | Active | XO (Standard) | 7.3728MHz | ±100ppm | -40°C ~ 85°C |
CE3290-8.000 | CRYSTEK晶振 | C3290 | Active | XO (Standard) | 8MHz | ±100ppm | -40°C ~ 85°C |
CE3390-1.544 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 1.544MHz | ±100ppm | -40°C ~ 85°C |
CE3390-1.843200 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 1.8432MHz | ±100ppm | -40°C ~ 85°C |
CE3390-10.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 10MHz | ±100ppm | -40°C ~ 85°C |
CE3390-12.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 12MHz | ±100ppm | -40°C ~ 85°C |
CE3390-12.288 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 12.288MHz | ±100ppm | -40°C ~ 85°C |
CE3390-12.352 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 12.352MHz | ±100ppm | -40°C ~ 85°C |
CE3390-14.318180 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 14.31818MHz | ±100ppm | -40°C ~ 85°C |
CE3390-15.360 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 15.36MHz | ±100ppm | -40°C ~ 85°C |
CE3390-16.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 16MHz | ±100ppm | -40°C ~ 85°C |
CE3390-16.384 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 16.384MHz | ±100ppm | -40°C ~ 85°C |
CE3390-18.432 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 18.432MHz | ±100ppm | -40°C ~ 85°C |
CE3390-19.440 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 19.44MHz | ±100ppm | -40°C ~ 85°C |
CE3390-2.048 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 2.048MHz | ±100ppm | -40°C ~ 85°C |
CE3390-20.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 20MHz | ±100ppm | -40°C ~ 85°C |
CE3390-20.480 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 20.48MHz | ±100ppm | -40°C ~ 85°C |
CE3390-24.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 24MHz | ±100ppm | -40°C ~ 85°C |
CE3390-24.704 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 24.704MHz | ±100ppm | -40°C ~ 85°C |
CE3390-25.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 25MHz | ±100ppm | -40°C ~ 85°C |
CE3390-3.686400 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 3.6864MHz | ±100ppm | -40°C ~ 85°C |
CE3390-30.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 30MHz | ±100ppm | -40°C ~ 85°C |
CE3390-32.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 32MHz | ±100ppm | -40°C ~ 85°C |
CE3390-32.768 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 32.768MHz | ±100ppm | -40°C ~ 85°C |
CE3390-33.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 33MHz | ±100ppm | -40°C ~ 85°C |
CE3390-33.333 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 33.333MHz | ±100ppm | -40°C ~ 85°C |
CE3390-35.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 35MHz | ±100ppm | -40°C ~ 85°C |
CE3390-4.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 4MHz | ±100ppm | -40°C ~ 85°C |
CE3390-40.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 40MHz | ±100ppm | -40°C ~ 85°C |
CE3390-6.176 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 6.176MHz | ±100ppm | -40°C ~ 85°C |
CE3390-7.372800 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 7.3728MHz | ±100ppm | -40°C ~ 85°C |
CE3390-8.000 | CRYSTEK晶振 | C33 | Active | XO (Standard) | 8MHz | ±100ppm | -40°C ~ 85°C |
CE3292-1.544 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 1.544MHz | ±50ppm | -40°C ~ 85°C |
CE3292-1.843200 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 1.8432MHz | ±50ppm | -40°C ~ 85°C |
CE3292-10.000 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 10MHz | ±50ppm | -40°C ~ 85°C |
CE3292-12.000 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 12MHz | ±50ppm | -40°C ~ 85°C |
CE3292-12.288 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 12.288MHz | ±50ppm | -40°C ~ 85°C |
CE3292-12.352 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 12.352MHz | ±50ppm | -40°C ~ 85°C |
CE3292-14.318180 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 14.31818MHz | ±50ppm | -40°C ~ 85°C |
CE3292-15.360 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 15.36MHz | ±50ppm | -40°C ~ 85°C |
CE3292-16.0000 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 16MHz | ±50ppm | -40°C ~ 85°C |
CE3292-16.384 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 16.384MHz | ±50ppm | -40°C ~ 85°C |
CE3292-18.432 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 18.432MHz | ±50ppm | -40°C ~ 85°C |
CE3292-19.440 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 19.44MHz | ±50ppm | -40°C ~ 85°C |
CE3292-2.048 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 2.048MHz | ±50ppm | -40°C ~ 85°C |
CE3292-20.000 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 20MHz | ±50ppm | -40°C ~ 85°C |
CE3292-20.480 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 20.48MHz | ±50ppm | -40°C ~ 85°C |
CE3292-24.000 | CRYSTEK晶振 | C3292 | Active | XO (Standard) | 24MHz | ±50ppm | -40°C ~ 85°C |
瑞斯克這款3.3V時鐘晶體振蕩器CE3390-25.000提供非常低的抖動相位,石英晶體振蕩器是一種使用逆壓電效應的電子振蕩器電路,即當電場施加在某些材料上時,它會產生機械變形。因此,它利用壓電材料的振動晶體的機械共振來產生具有非常精確頻率的電信號。晶體振蕩器具有高穩定性、品質因數、小尺寸和低成本,這使得它們優于其他諧振器,如LC電路、陶瓷諧振器、轉叉等。

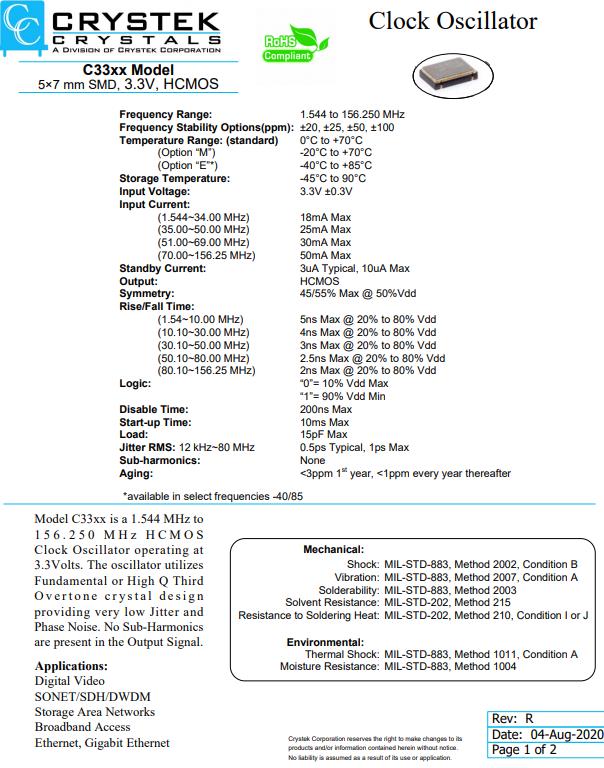

編碼CE3390-25.000,C33xx型號是一款1.544MHzto156.250MHz HCMOS時鐘晶體振蕩器工作在3.3伏。振蕩器利用基本面還是高Q第三Overtonecrystaldesign提供非常低的抖動相位噪聲。沒有諧波出現在輸出信號中。 應用: 數字視頻,SONET/SDH/DWDM,存儲區域網絡,寬帶接入,以太網,千兆以太網.
