    4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,±15ppm,3225mm諧振器

  • 編號：46000951
  • 頻率：25MHz
  • 尺寸：3.2x2.5mm
  • RoHS
  • RoHS2
4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,15ppm,3225mm諧振器，日本進口NDK晶振，型號NX3225SA，編碼為：NX3225SA-25.000M-STD-CSR-3，是一款小體積晶振尺寸3.22.50.55mm四腳貼片晶振，無源晶振，石英晶體諧振器，...


4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,±15ppm,3225mm諧振器，日本進口NDK晶振，型號NX3225SA，編碼為：NX3225SA-25.000M-STD-CSR-3，是一款小體積晶振尺寸3.2×2.5×0.55mm四腳貼片晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，工作溫度范圍：-40℃至+125℃，在極端惡劣的環境條件下也能具有穩定的啟動特性，優異的抗環境性能，如耐熱、振動和抗沖擊性，回流溫度分布（可用于無鉛焊接），符合AEC-Q200，緊湊的表面安裝晶體單元，特別適用于汽車電子產品，汽車電子控制板，汽車動力轉向控制器，汽車遙控器，汽車音影晶振，汽車胎壓檢測，通訊設備，無線網絡，藍牙模塊，醫療設備，平板電腦等應用。

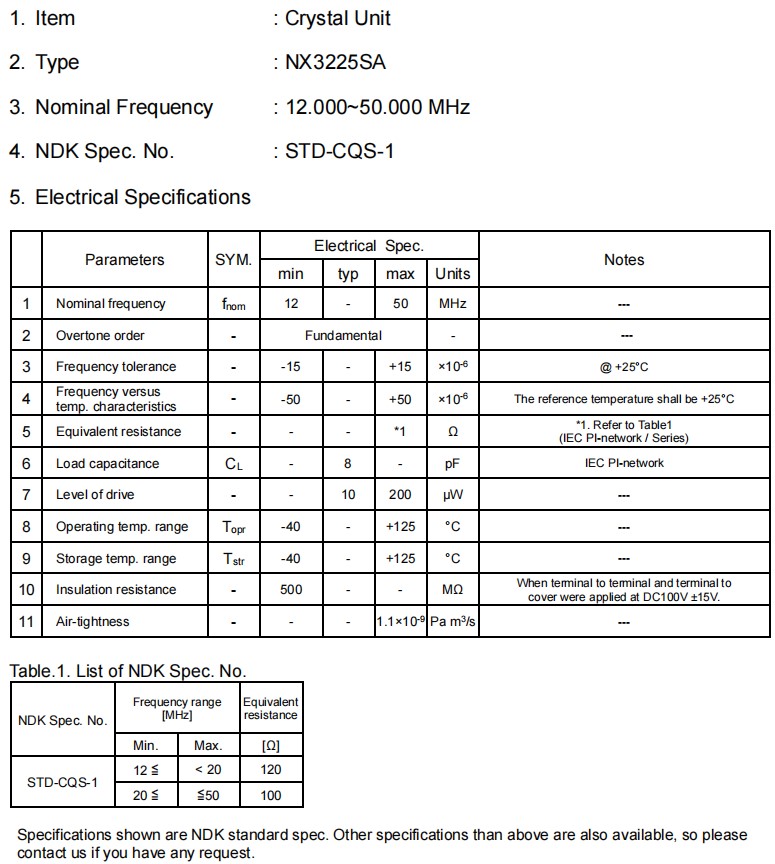

4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,±15ppm,3225mm諧振器，參數表
Item Model NX3225SA
Nominal Frequency 12 to 64 MHz 16 to 54 MHz 40 to 150 MHz
Overtone Order Fundamental Fundamental 3rd overtone
Frequency Tolerance (25 ±3 °C) ±15 × 10−6 ±10 × 10−6 ±20 × 10−6
Frequency versus Temperature Characteristics
(with reference to +25 °C)		 ±25 × 10−6 ±10 × 10−6 ±25 × 10−6
Operating Temperature Range −40 to +85 °C −20 to +75 °C −40 to +85 °C
Storage Temperature Range −40 to +85 °C
Equivalent Series Resistance Refer to *1 Refer to *2 Refer to *3
Level of Drive 10 μW (Max. 200 μW)
Load Capacitance 8 pF 10 pF Series resonance
Specifications Number STD-CSR-6 STD-CSQ-1 STD-CSR-7

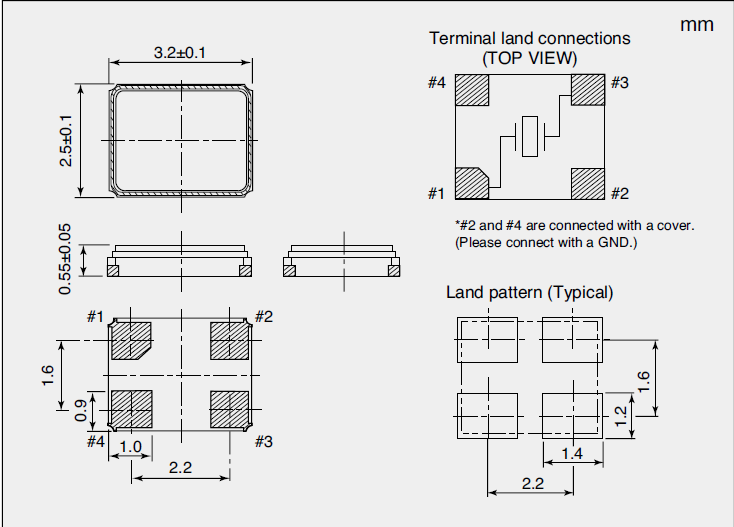

4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,±15ppm,3225mm諧振器   尺寸圖


貼片石英晶振 品牌 型號 頻率 頻率穩定度 包裝/封裝
NX3225SA-24.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 24MHz ±15ppm 4-SMD, No Lead
NX3225SA-16.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 16MHz ±15ppm 4-SMD, No Lead
NX3225SA-32.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 32MHz ±15ppm 4-SMD, No Lead
NX3225SA-26.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 26MHz ±15ppm 4-SMD, No Lead
NX3225SA-20.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 20MHz ±15ppm 4-SMD, No Lead
NX3225SA-14.31818MHZ-STD-CSR-1 NDK晶振 NX3225SA 14.31818MHz ±15ppm 4-SMD, No Lead
NX3225SA-24.576MHZ-STD-CSR-1 NDK晶振 NX3225SA 24.576MHz ±15ppm 4-SMD, No Lead
NX3225SA-27.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 27MHz ±15ppm 4-SMD, No Lead
NX3225SA-32M-EXS00A-02994 NDK晶振 NX3225SA 32MHz ±15ppm 4-SMD, No Lead
NX3225SA-25.000M-STD-CSR-3 NDK晶振 NX3225SA 25MHz ±15ppm 4-SMD, No Lead
NX3225SA-20.000M-STD-CSR-3 NDK晶振 NX3225SA 20MHz ±15ppm 4-SMD, No Lead
NX3225SA-26.000M-STD-CSQ-1 NDK晶振 NX3225SA 26MHz ±10ppm 4-SMD, No Lead
NX3225SA-30.000M-STD-CSR-3 NDK晶振 NX3225SA 30MHz ±15ppm 4-SMD, No Lead
NX3225SA-32MHZ-EXS00A-CS02368 NDK晶振 NX3225SA 32MHz ±16ppm 4-SMD, No Lead
NX3225SA-25.000M-STD-CRS-2 NDK晶振 NX3225SA 25MHz ±50ppm 4-SMD, No Lead
NX3225SA-27M-STD-CRS-2 NDK晶振 NX3225SA 27MHz ±50ppm 4-SMD, No Lead
NX3225SA-12MHZ-STD-CSR-6 NDK晶振 NX3225SA 12MHz ±25ppm 4-SMD, No Lead
NX3225SA-16MHZ-STD-CSR-6 NDK晶振 NX3225SA 16MHz ±25ppm 4-SMD, No Lead
NX3225SA-26.000000MHZ-G4 NDK晶振 NX3225SA 26MHz ±10ppm 4-SMD, No Lead
NX3225SA-26.000000MHZ-B1 NDK晶振 NX3225SA 26MHz ±10ppm 4-SMD, No Lead
NX3225SA-16.000000MHZ-T1 NDK晶振 NX3225SA 16MHz ±10ppm 4-SMD, No Lead
NX3225SA-26.000000MHZ-G2 NDK晶振 NX3225SA 26MHz ±11ppm 4-SMD, No Lead
NX3225SA-16.000000MHZ-B3 NDK晶振 NX3225SA 16MHz ±15ppm 4-SMD, No Lead
NX3225SA-26.000000MHZ-G3 NDK晶振 NX3225SA 26MHz ±10ppm 4-SMD, No Lead
NX3225SA-39.000000MHZ-B4 NDK晶振 NX3225SA 39MHz ±10ppm 4-SMD, No Lead
NX3225SA-20.000M-STD-CRS-2 NDK晶振 NX3225SA 20MHz ±50ppm 4-SMD, No Lead
NX3225SA-16.000M-STD-CRS-2 NDK晶振 NX3225SA 16MHz ±50ppm 4-SMD, No Lead
NX3225SA-26.000M-STD-CSR-3 NDK晶振 NX3225SA 26MHz ±15ppm 4-SMD, No Lead
NX3225SA-40.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 40MHz ±15ppm 4-SMD, No Lead
NX3225SA-20.000000MHZ-B2 NDK晶振 NX3225SA 20MHz ±15ppm 4-SMD, No Lead
NX3225SA-114.285MHZ-EXS00A-CS06528 NDK晶振 NX3225SA 114.285MHz ±20ppm 4-SMD, No Lead
NX3225SA-27.12M-STD-CSR-3 NDK晶振 NX3225SA 27.12MHz ±15ppm 4-SMD, No Lead
NX3225SA-12.000M-STD-CRS-2 NDK晶振 NX3225SA 12MHz ±50ppm 4-SMD, No Lead
NX3225SA-12.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 12MHz ±15ppm 4-SMD, No Lead
NX3225SA-13.56M-STD-CSR-3 NDK晶振 NX3225SA 13.56MHz ±15ppm 4-SMD, No Lead
NX3225SA-40M-EXS00A-CS03880 石英晶振 NX3225SA 40MHz ±17ppm 4-SMD, No Lead
NX3225SA-25.000M-STD-CSR-6 NDK晶振 NX3225SA 25MHz ±25ppm 4-SMD, No Lead
NX3225SA-12MHZ-STD-CSR-3 NDK晶振 NX3225SA 12MHz ±15ppm 4-SMD, No Lead
NX3225SA-24.000M-STD-CSR-3 NDK晶振 NX3225SA 24MHz ±15ppm 4-SMD, No Lead
NX3225SA-22.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 22MHz ±15ppm 4-SMD, No Lead
NX3225SA-25.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 25MHz ±15ppm 4-SMD, No Lead
NX3225SA-12.288M-STD-CSR-3 NDK晶振 NX3225SA 12.288MHz ±15ppm 4-SMD, No Lead
NX3225SA-13M-STD-CSR-6 NDK晶振 NX3225SA 13MHz ±25ppm 4-SMD, No Lead
NX3225SA-12.288M-STD-CRS-2 NDK晶振 NX3225SA 12.288MHz ±50ppm 4-SMD, No Lead
NX3225SA-44.000MHZ-STD-CSR-1 NDK晶振 NX3225SA 44MHz ±15ppm 4-SMD, No Lead
NX3225SA-16MHZ-STD-CSR-3 NDK晶振 NX3225SA 16MHz ±15ppm 4-SMD, No Lead
NX3225SA-40.000M-STD-CRS-2 NDK晶振 NX3225SA 40MHz ±50ppm 4-SMD, No Lead
NX3225DA-16.000MHZ-EXS00A-03311 NDK晶振 NX3225SA 16MHz - 4-SMD, No Lead
