首頁臺產晶振TXC晶振臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振

    臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振

  • 編號：3661177
  • 頻率：4.9152MHz
  • 尺寸：12.5*4.8mm
  • RoHS
  • RoHS2
臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振,臺灣TXC晶振公司，晶技晶振，臺灣晶振，進口晶振，石英晶振，四腳晶振，AT-20.500MDHQ-T晶振，貼片晶振，無源晶振，網絡設備晶振，汽車晶振，高品質晶振，汽車氛圍燈...

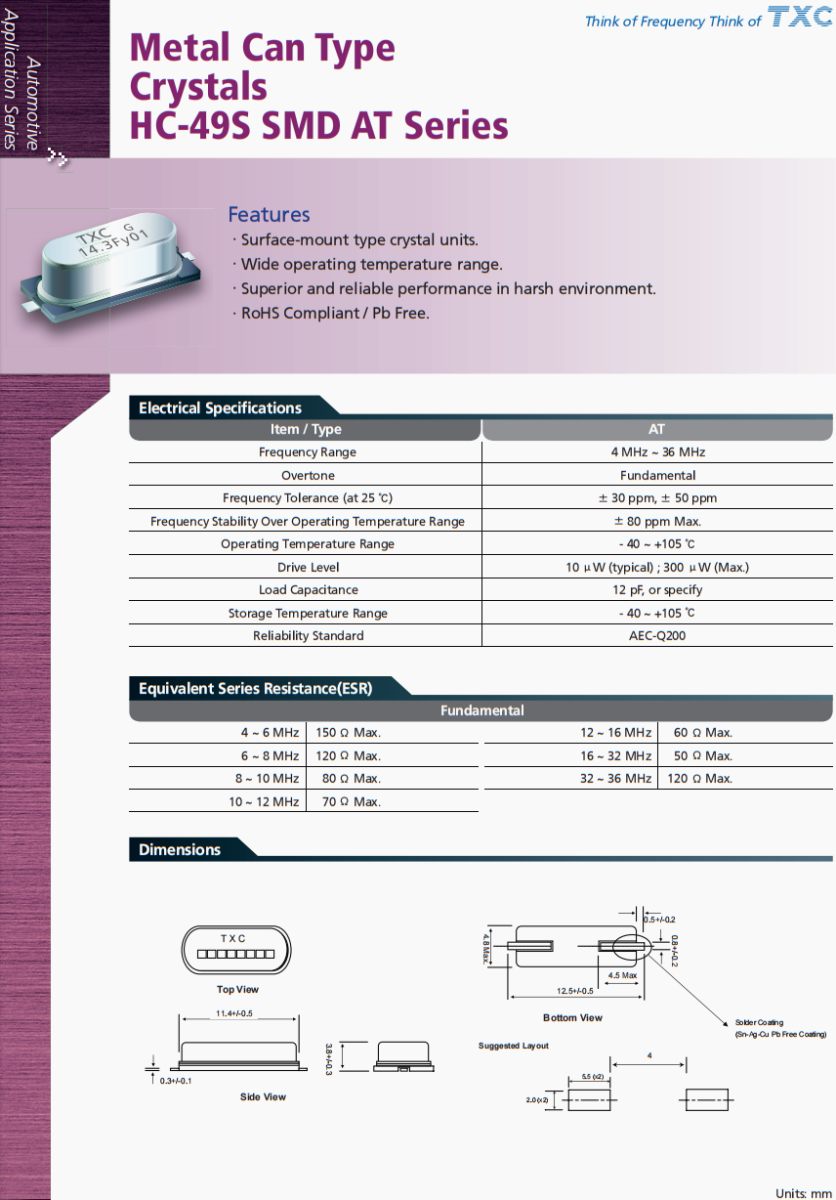

臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振,臺灣TXC晶振公司，晶技晶振，臺灣晶振，進口晶振，石英晶振，四腳晶振，AT-20.500MDHQ-T晶振，貼片晶振，無源晶振，網絡設備晶振，汽車晶振，高品質晶振，汽車氛圍燈晶振，大燈控制器晶振，小尺寸晶振，耐高溫晶振，金屬罐型，晶體， AT系列HC-49S SMD，特征，表面貼裝型晶體單元。工作溫度范圍寬。·惡劣環境下性能優越可靠。符合RoHS標準/無鉛。
臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振
     型號      AT
     頻率范圍      4 MHz ~ 36 MHz
     工作模式      Fundamental
     頻率容差      ± 30 ppm, ± 50 ppm
     溫度范圍內的頻率穩定度      ± 80 ppm Max.
     工作溫度      - 40 ~ +105 ℃
     驅動電平      10 μW (typical) ; 300 μW (Max.)
     負載電容      12 pF, or specify
     儲存溫度范圍      - 40 ~ +105 ℃
     可靠性標準      AEC-Q200

臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振


TXC原廠編碼 生產商品牌 型號 頻率 頻率穩定度 頻率容差 負載電容
AT-6.000MAGB-T TXC晶振 AT 6MHz ±50ppm ±30ppm 8.5pF
AT-16.000MAOQ-T TXC晶振 AT 16MHz ±100ppm ±30ppm 10pF
AT-16.000MAPY-T TXC晶振 AT 16MHz ±50ppm ±30ppm 7pF
AT-16.000MAQE-T TXC晶振 AT 16MHz ±30ppm ±30ppm 12pF
AT-16.000MBGJ-T TXC晶振 AT 16MHz ±50ppm ±50ppm 18pF
AT-16.000MDHE-T TXC晶振 AT 16MHz ±30ppm ±20ppm 12pF
AT-16.000MDHK-T TXC晶振 AT 16MHz ±30ppm ±20ppm 20pF
AT-16.000MDIE-T TXC晶振 AT 16MHz ±20ppm ±20ppm 12pF
AT-16.000MDIJ-T TXC晶振 AT 16MHz ±20ppm ±20ppm 18pF
AT-16.000MDIV-T TXC晶振 AT 16MHz ±20ppm ±20ppm 8pF
AT-16.666MBGJ-T TXC晶振 AT 16.666MHz ±50ppm ±50ppm 18pF
AT-16.9344MAHE-T TXC晶振 AT 16.9344MHz ±30ppm ±30ppm 12pF
AT-16.9344MDHE-T TXC晶振 AT 16.9344MHz ±30ppm ±20ppm 12pF
AT-18.000MAGI-T TXC晶振 AT 18MHz ±50ppm ±30ppm 16pF
AT-18.432MAPQ-T TXC晶振 AT 18.432MHz ±50ppm ±30ppm 10pF
AT-20.000MDGE-T TXC晶振 AT 20MHz ±50ppm ±20ppm 12pF
AT-20.49978MDHQ-T TXC晶振 AT 20.49978MHz ±30ppm ±20ppm 10pF
AT-20.500MDHQ-T TXC晶振 AT 20.5MHz ±30ppm ±20ppm 10pF
AT-23.51222MFHE-T TXC晶振 AT 23.51222MHz ±30ppm ±15ppm 12pF
AT-24.000MAHE-T TXC晶振 AT 24MHz ±30ppm ±30ppm 12pF
AT-24.000MAHJ-T TXC晶振 AT 24MHz ±30ppm ±30ppm 18pF
AT-24.000MAHK-T TXC晶振 AT 24MHz ±30ppm ±30ppm 20pF
AT-24.576MAGD-T TXC晶振 AT 24.576MHz ±50ppm ±30ppm 11pF
AT-24.576MDHK-T TXC晶振 AT 24.576MHz ±30ppm ±20ppm 20pF
AT-25.000MAHE-T TXC晶振 AT 25MHz ±30ppm ±30ppm 12pF
AT-27.000MAGI-T TXC晶振 AT 27MHz ±50ppm ±30ppm 16pF
AT-27.000MAHK-T TXC晶振 AT 27MHz ±30ppm ±30ppm 20pF
AT-27.000MAOJ-T TXC晶振 AT 27MHz ±100ppm ±30ppm 18pF
AT-27.000MAPJ-T TXC晶振 AT 27MHz ±50ppm ±30ppm 18pF
AT-27.120MAHQ-T TXC晶振 AT 27.12MHz ±30ppm ±30ppm 10pF
AT-28.63636MAGK-T TXC晶振 AT 28.63636MHz ±50ppm ±30ppm 20pF
AT-28.63636MAHE-T TXC晶振 AT 28.63636MHz ±30ppm ±30ppm 12pF
AT-28.63636MAHI-T TXC晶振 AT 28.63636MHz ±30ppm ±30ppm 16pF
AT-28.63636MDGE-T TXC晶振 AT 28.63636MHz ±50ppm ±20ppm 12pF
AT-30.429MAGE-T TXC晶振 AT 30.429MHz ±50ppm ±30ppm 12pF
AT-33.8688MAHQ-T TXC晶振 AT 33.8688MHz ±30ppm ±30ppm 10pF
AT-33.8688MDHJ-T TXC晶振 AT 33.8688MHz ±30ppm ±20ppm 18pF
AT-33.8688MDHQ-T TXC晶振 AT 33.8688MHz ±30ppm ±20ppm 10pF
AT-37.050MAHV-T TXC晶振 AT 37.05MHz ±30ppm ±30ppm 8pF
AT-4.000MAFK-T TXC晶振 AT 4MHz ±100ppm ±30ppm 20pF
AT-4.000MAGH-T TXC晶振 AT 4MHz ±50ppm ±30ppm 15pF
AT-4.000MAGJ-T TXC晶振 AT 4MHz ±50ppm ±30ppm 18pF
AT-4.000MAHE-T TXC晶振 AT 4MHz ±30ppm ±30ppm 12pF
AT-4.000MAHI-T TXC晶振 AT 4MHz ±30ppm ±30ppm 16pF
AT-4.000MAHK-T TXC晶振 AT 4MHz ±30ppm ±30ppm 20pF
AT-4.000MAPE-T TXC晶振 AT 4MHz ±50ppm ±30ppm 12pF
AT-4.000MBFI-T TXC晶振 AT 4MHz ±100ppm ±50ppm 16pF
AT-4.000MDGE-T TXC晶振 AT 4MHz ±50ppm ±20ppm 12pF
AT-4.000MDGI-T TXC晶振 AT 4MHz ±50ppm ±20ppm 16pF
AT-4.000MDGJ-T TXC晶振 AT 4MHz ±50ppm ±20ppm 18pF
AT-4.000MDHC-T TXC晶振 AT 4MHz ±30ppm ±20ppm 9pF
AT-4.000MDHJ-T TXC晶振 AT 4MHz ±30ppm ±20ppm 18pF
AT-4.000MFHH-T TXC晶振 AT 4MHz ±30ppm ±15ppm 15pF
AT-4.007MAHQ-T TXC晶振 AT 4.007MHz ±30ppm ±30ppm 10pF
AT-4.9152MDGE-T TXC晶振 AT 4.9152MHz ±50ppm ±20ppm 12pF
AT-41.600MDGQ-T TXC晶振 AT 41.6MHz ±50ppm ±20ppm 10pF
AT-5.000MAHE-T TXC晶振 AT 5MHz ±30ppm ±30ppm 12pF
AT-5.000MAHI-T TXC晶振 AT 5MHz ±30ppm ±30ppm 16pF
AT-6.000MABK-T TXC晶振 AT 6MHz ±50ppm ±30ppm 20pF
