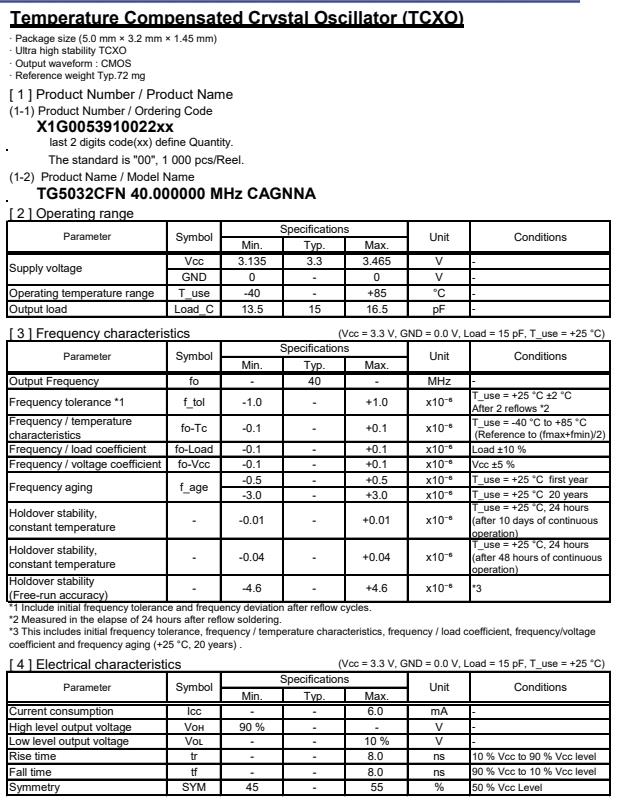

SMD溫補晶振X1G00539100220與汽車胎壓檢測絕配?愛普生是一家非常具有創新能力，以及追求極致完美的知名制造商，通過自身努力奮斗，贏得廣大用戶為其喝彩，成長的路上不懼困難，敢于不斷挑戰自我，并開發出具有優勢的晶振產品，研發生產這款TG5032CFN晶振，有源晶振編碼X1G005391002200，頻率40.000000兆赫，輸出WaveCMOS，電源電壓3.13 ~ 3.46 V，電源電壓(一般)3.300V，尺寸(LxWxH)5.0 x 3.2 x 1.4mm，操作溫度-40至++85°C，頻率公差+/- 1.0ppm，具有低損耗，低相位相噪，高性能的特點，適合用于汽車胎壓檢測，羅拉無線模塊，通訊模塊，儀器設備，醫療設備等領域。

SMD溫補晶振X1G00539100220與汽車胎壓檢測絕配?愛普生通過應用其多年來開發的高效、緊湊和精密技術來解決挑戰，尋求推進工業前沿并推動循環經濟。這些技術可以節省能源、實現更小的石英晶振產品并提高準確性和精度，使愛普生能夠?yàn)榭沙掷m(xù)發展目標 (SDG) 做出貢獻，從而為所有人帶來更美好、更可持續的未來。

Product Number	Model	愛普生晶振	LxWxH	Output Wave	Supply Voltage	F.Tol@25°C	Ope Temperature
X1G005391000600	TG5032CFN	19.200000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391000700	TG5032CFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391000800	TG5032CFN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391000900	TG5032CFN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391001000	TG5032CFN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391001100	TG5032CFN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391001500	TG5032CFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391001600	TG5032CFN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391001700	TG5032CFN	19.200000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391001800	TG5032CFN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391001900	TG5032CFN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391002000	TG5032CFN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391002100	TG5032CFN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391002200	TG5032CFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391002300	TG5032CFN	24.576000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391002500	TG5032CFN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391002600	TG5032CFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391002700	TG5032CFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391003000	TG5032CFN	19.440000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005391003100	TG5032CFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G005391003200	TG5032CFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G005391003300	TG5032CFN	30.720000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G005391003400	TG5032CFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G005391003500	TG5032CFN	25.600000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G005391003600	TG5032CFN	30.720000 MHz	5.00 x 3.20 x 1.45 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G005391003700	TG5032CFN	15.360000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C

愛普生拓優科夢把半導體（IC）稱之為“產業之米”,并認為晶體元器件更是離不開的“產業之鹽”.將進一步致力于小型、高穩定、高精度進口晶振，晶體元器件的開發,為現有的應用程序以及生活新藍圖開拓廣闊前景.
