汽車音響控制器專用晶振Q22FA2380013300

來源：http://dxwyp.cn 作者：康華爾電子 2022年10月08
近幾年互聯網高速發展，隨著5G時代的到來，智能汽車的發展也越發的迅速。汽車電子對晶振的要求比消費類的科技數碼產品高的多，特別是耐高溫這一塊，汽車電子中的晶振最好能在高溫和低溫狀態下正常工作。

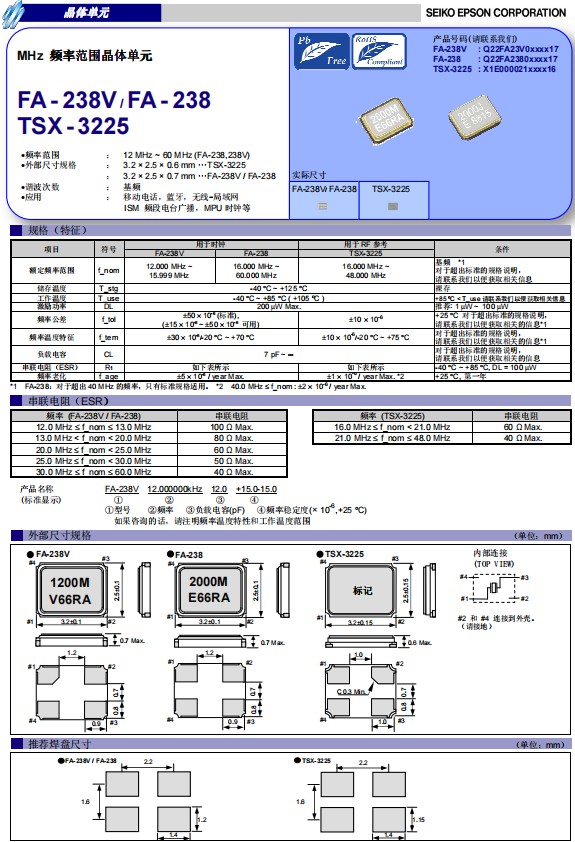

愛普生晶振FA-238是一款小體積尺寸3.2x2.5mm無源晶振，石英晶體諧振器，四腳貼片晶振，頻率范圍16MHz至60MHz，工作溫度-40℃至+85℃（+105℃），具有超小型，輕薄型，耐熱，耐振，耐沖擊等優良的耐環境特性。特別適用于小型便捷式移動通訊，可穿戴設備，智能手機，平板電腦，便捷式電子儀器，汽車電子，智能家居等。
汽車音響控制器專用晶振Q22FA2380013300,Q22FA2380011400,無源晶振
產品編碼 尺寸 型號 貼片晶振 負載電容 精度 頻率公差 工作溫度
Q22FA2380000100 3.2x2.5x0.7mm FA-238 20.000000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380000200 3.2x2.5x0.7mm FA-238 20.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380001100 3.2x2.5x0.7mm FA-238 16.934400MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380001300 3.2x2.5x0.7mm FA-238 25.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380002200 3.2x2.5x0.7mm FA-238 27.000000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380002800 3.2x2.5x0.7mm FA-238 27.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380003500 3.2x2.5x0.7mm FA-238 20.000000MHz 12pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380004100 3.2x2.5x0.7mm FA-238 24.000000MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380004400 3.2x2.5x0.7mm FA-238 24.000000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380004700 3.2x2.5x0.7mm FA-238 16.000000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380004800 3.2x2.5x0.7mm FA-238 49.152000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380006300 3.2x2.5x0.7mm FA-238 24.576000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380006500 3.2x2.5x0.7mm FA-238 24.000000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380007500 3.2x2.5x0.7mm FA-238 50.000000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380007600 3.2x2.5x0.7mm FA-238 48.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380007800 3.2x2.5x0.7mm FA-238 48.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380007900 3.2x2.5x0.7mm FA-238 27.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380008500 3.2x2.5x0.7mm FA-238 48.000000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380008800 3.2x2.5x0.7mm FA-238 24.576000MHz 12pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380008900 3.2x2.5x0.7mm FA-238 24.000000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380009100 3.2x2.5x0.7mm FA-238 18.432000MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380009200 3.2x2.5x0.7mm FA-238 25.000000MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380009300 3.2x2.5x0.7mm FA-238 18.432000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380009500 3.2x2.5x0.7mm FA-238 25.000000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380009800 3.2x2.5x0.7mm FA-238 30.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380010300 3.2x2.5x0.7mm FA-238 27.000000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380011400 3.2x2.5x0.7mm FA-238 24.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380012000 3.2x2.5x0.7mm FA-238 24.576000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380012700 3.2x2.5x0.7mm FA-238 18.432000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380012800 3.2x2.5x0.7mm FA-238 18.432000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380012900 3.2x2.5x0.7mm FA-238 22.579200MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380013300 3.2x2.5x0.7mm FA-238 16.000000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380013700 3.2x2.5x0.7mm FA-238 40.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380013800 3.2x2.5x0.7mm FA-238 27.000000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380014000 3.2x2.5x0.7mm FA-238 48.000000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380014100 3.2x2.5x0.7mm FA-238 32.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380014600 3.2x2.5x0.7mm FA-238 26.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380014700 3.2x2.5x0.7mm FA-238 26.000000MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380014800 3.2x2.5x0.7mm FA-238 48.000000MHz 12pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380014900 3.2x2.5x0.7mm FA-238 18.432000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380015600 3.2x2.5x0.7mm FA-238 24.576000MHz 10pF +/-50ppm +/-30ppm -20to+70°C

Q22FA2380016500 3.2x2.5x0.7mm FA-238 25.000000MHz 12pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380017000 3.2x2.5x0.7mm FA-238 20.000000MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380017900 3.2x2.5x0.7mm FA-238 16.000000MHz 12.5pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380019000 3.2x2.5x0.7mm FA-238 24.576000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380019800 3.2x2.5x0.7mm FA-238 24.576000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380020500 3.2x2.5x0.7mm FA-238 19.200000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380021600 3.2x2.5x0.7mm FA-238 16.000000MHz 12pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380023800 3.2x2.5x0.7mm FA-238 24.000000MHz 20pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380024000 3.2x2.5x0.7mm FA-238 24.000000MHz 30pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380024400 3.2x2.5x0.7mm FA-238 48.000000MHz 20pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380024500 3.2x2.5x0.7mm FA-238 24.000000MHz 30pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380025100 3.2x2.5x0.7mm FA-238 36.864000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380026300 3.2x2.5x0.7mm FA-238 16.000000MHz 9pF +/-15ppm +/-30ppm -20to+70°C
Q22FA2380026400 3.2x2.5x0.7mm FA-238 20.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380026900 3.2x2.5x0.7mm FA-238 27.000000MHz 9pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380029100 3.2x2.5x0.7mm FA-238 27.000000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380030500 3.2x2.5x0.7mm FA-238 24.576000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380031200 3.2x2.5x0.7mm FA-238 28.636360MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380032200 3.2x2.5x0.7mm FA-238 20.000000MHz 12.5pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380032900 3.2x2.5x0.7mm FA-238 32.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380033800 3.2x2.5x0.7mm FA-238 24.000000MHz 18pF +/-15ppm +/-30ppm -20to+70°C
Q22FA2380035000 3.2x2.5x0.7mm FA-238 20.000000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380035300 3.2x2.5x0.7mm FA-238 33.330000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380035500 3.2x2.5x0.7mm FA-238 27.000000MHz 7pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380035600 3.2x2.5x0.7mm FA-238 45.000000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380036400 3.2x2.5x0.7mm FA-238 48.000000MHz 7pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380036700 3.2x2.5x0.7mm FA-238 16.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380040500 3.2x2.5x0.7mm FA-238 40.000000MHz 10pF +/-50ppm +/-50ppm -20to+70°C
Q22FA2380041500 3.2x2.5x0.7mm FA-238 27.120000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380041900 3.2x2.5x0.7mm FA-238 40.000000MHz 7pF +/-50ppm +/-50ppm -20to+70°C
Q22FA2380042100 3.2x2.5x0.7mm FA-238 16.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380042300 3.2x2.5x0.7mm FA-238 30.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380043200 3.2x2.5x0.7mm FA-238 50.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380044700 3.2x2.5x0.7mm FA-238 48.000000MHz 10pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380044800 3.2x2.5x0.7mm FA-238 50.000000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380045800 3.2x2.5x0.7mm FA-238 16.384000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380046400 3.2x2.5x0.7mm FA-238 33.333000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380047800 3.2x2.5x0.7mm FA-238 25.000000MHz 18pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380048000 3.2x2.5x0.7mm FA-238 27.000000MHz 10pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380048300 3.2x2.5x0.7mm FA-238 16.000000MHz 10pF +/-20ppm +/-30ppm -40to+85°C
Q22FA2380048900 3.2x2.5x0.7mm FA-238 27.000000MHz 10pF +/-20ppm +/-30ppm -40to+85°C
Q22FA2380054700 3.2x2.5x0.7mm FA-238 25.000000MHz 16pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380055300 3.2x2.5x0.7mm FA-238 30.000000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380057300 3.2x2.5x0.7mm FA-238 48.000000MHz 10pF +/-50ppm +/-50ppm -20to+70°C
Q22FA2380059100 3.2x2.5x0.7mm FA-238 24.000000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380059400 3.2x2.5x0.7mm FA-238 48.000000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380059900 3.2x2.5x0.7mm FA-238 27.000000MHz 16pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380060800 3.2x2.5x0.7mm FA-238 48.000000MHz 7pF +/-50ppm +/-50ppm -20to+70°C
Q22FA2380061200 3.2x2.5x0.7mm FA-238 44.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380062000 3.2x2.5x0.7mm FA-238 16.000000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380065300 3.2x2.5x0.7mm FA-238 25.000000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380066600 3.2x2.5x0.7mm FA-238 18.432000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380067800 3.2x2.5x0.7mm FA-238 25.000000MHz 20pF +/-30ppm +/-30ppm -20to+70°C
汽車音響控制器專用晶振Q22FA2380013300,Q22FA2380011400,無源晶振
3225mm體積貼片晶振，本產品已被確定的高信賴性最適合用于汽車電子部件，在極端嚴酷的環境條件下也能發揮穩定的起振特性，工作溫度要達到-40到+85℃。常見的3225封裝貼片晶振還有：FA-238A、TSX-3225、FA-238V，F(xiàn)A-238等。
汽車系統中所用的晶振包括音響、藍牙、雷達、時鐘、顯示屏等等不下5處，車載音響中用到的12M或者是16M、26M貼片晶振，時鐘上到的是32.768khz晶振，倒車?yán)走_(dá)中也有用到晶振，像3225封裝晶振16M、26M、32M都是雷達中比較常用的。
