Aker音叉晶體CTS3-32.768-9-20-R為何開創新的精度標準?

來源：http://konuaer.com 作者：lyii 2023年06月13

Aker音叉晶體CTS3-32.768-9-20-R為何開創新的精度標準?在這一突破之前，所有的鐘表都是純機械運轉的。通過安裝石英晶體和使石英振蕩的相應能量源，首次引入了電子元件。這確實奏效了:新款石英表的走時比純機械手表精確得多。
但是石英晶體實際上實現了什么功能呢？簡而言之，高質量石英晶體確保手表“知道”一秒持續多長時間。這是通過產生恰好1赫茲的頻率來實現的。赫茲是頻率的常用測量單位。它表示周期信號中每秒重復過程的次數；在這種情況下，秒針在表盤上前進一個位置。

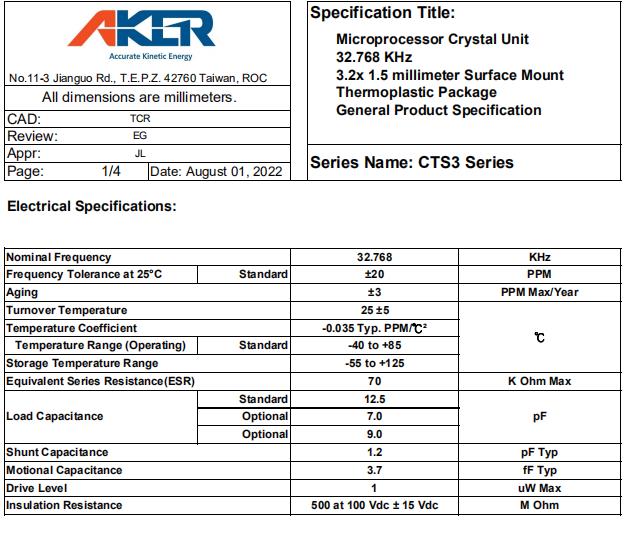

32，768赫茲音叉無源晶體的唯一標準頻率來自哪里？要理解這一點，你必須知道石英晶體的頻率取決于它的形狀和大小。一個自然頻率只有1赫茲的石英會如此之大，它更適合“大本鐘”鐘樓，而不是手表。顯然，從生產和使用的角度來看，這是相當不切實際的，所以有一個特殊的技巧。Aker公司匠心締造石英晶體編碼CTS3-32.768-9-20-R，Crystal，無源晶振，頻率為0.032768MHz，頻率公差為±20ppm (Tol) ，負載電容為9pF，腳位為2-Pin，SMD，T/R.

型號 供應商 類型 說明
S73305T-11.0592-X-15-R Aker Technology 表面貼裝晶體振蕩器 Clock Oscillator Low Profile 5.0 x 7.0 millimeter Surface Mount
S733025T-49.152-15-R Aker Technology 表面貼裝晶體振蕩器 Clock Oscillator Low Profile 5.0 x 7.0 millimeter Surface Mount
CTS332.76812.520R Aker Technology 石英晶體 Crystal 0.032768MHz ±20ppm (Tol) 12.5pF FUND 65000Ohm 2-Pin SMD T/R
CTP3-32.768-6-20-R Aker Technology 石英晶體 Crystal 0.032768MHz ±20ppm (Tol) 6pF FUND 50000Ohm 4-Pin SMD T/R
CTS2-32.768-7-20-R Aker Technology 石英晶體 Crystal 0.032768MHz ±20ppm (Tol) 7pF FUND 65000Ohm 2-Pin SMD T/R
CTS2-32.768-9-20-R Aker Technology 石英晶體 Crystal 0.032768MHz ±20ppm (Tol) 9pF FUND 65000Ohm 2-Pin SMD T/R
CTS3-32.768-7-20-R Aker Technology 石英晶體 Crystal 0.032768MHz ±20ppm (Tol) 7pF FUND 65000Ohm 2-Pin SMD T/R
CTS3-32.768-9-20-R AKER晶振 石英晶體 Crystal 0.032768MHz ±20ppm (Tol) 9pF FUND 65000Ohm 2-Pin SMD T/R
C16-37.400-10-1520-R Aker Technology 石英晶體 Crystal 37.4MHz ±15ppm (Tol) ±20ppm (Stability) 10pF 4-Pin CSMD T/R
C16-26.000-8-1520-R Aker Technology 石英晶體 Crystal 26MHz ±15ppm (Tol) ±20ppm (Stability) 8pF 4-Pin CSMD T/R
C16-26.000-12-1520-R Aker Technology 石英晶體 Crystal 26MHz ±15ppm (Tol) ±20ppm (Stability) 12pF 4-Pin CSMD T/R
C16-35.328-10-1520-R Aker Technology 石英晶體 Crystal 35.328MHz ±15ppm (Tol) ±20ppm (Stability) 10pF 4-Pin CSMD T/R
C16-48.000-8-1520-R Aker Technology 石英晶體 Crystal 48MHz ±15ppm (Tol) ±20ppm (Stability) 8pF 4-Pin CSMD T/R
C16-35.328-12-1530-X-R Aker Technology 石英晶體 Crystal 35.328MHz ±15ppm (Tol) ±30ppm (Stability) 12pF 4-Pin CSMD T/R
C16-48.000-10-1530-X-R Aker Technology 石英晶體 Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 10pF 4-Pin CSMD T/R
C16-48.000-12-1520-R Aker Technology 石英晶體 Crystal 48MHz ±15ppm (Tol) ±20ppm (Stability) 12pF 4-Pin CSMD T/R
C16-27.120-10-1530-X-R Aker Technology 石英晶體 Crystal 27.12MHz ±15ppm (Tol) ±30ppm (Stability) 10pF 4-Pin CSMD T/R
C16-27.120-8-1520-R Aker Technology 石英晶體 Crystal 27.12MHz ±15ppm (Tol) ±20ppm (Stability) 8pF 4-Pin CSMD T/R
C16-27.120-12-1520-R Aker Technology 石英晶體 Crystal 27.12MHz ±15ppm (Tol) ±20ppm (Stability) 12pF 4-Pin CSMD T/R
C16-50.000-8-1520-R Aker Technology 石英晶體 Crystal 50MHz ±15ppm (Tol) ±20ppm (Stability) 8pF 4-Pin CSMD T/R
C16-54.240-12-1520-R Aker Technology 石英晶體 Crystal 54.24MHz ±15ppm (Tol) ±20ppm (Stability) 12pF 4-Pin CSMD T/R
C16-30.000-12-1520-R Aker Technology 石英晶體 Crystal 30MHz ±15ppm (Tol) ±20ppm (Stability) 12pF 4-Pin CSMD T/R
C16-54.240-10-1530-X-R Aker Technology 石英晶體 Crystal 54.24MHz ±15ppm (Tol) ±30ppm (Stability) 10pF 4-Pin CSMD T/R
C16-37.400-8-1530-X-R Aker Technology 石英晶體 Crystal 37.4MHz ±15ppm (Tol) ±30ppm (Stability) 8pF 4-Pin CSMD T/R
C16-30.000-10-1530-X-R Aker Technology 石英晶體 Crystal 30MHz ±15ppm (Tol) ±30ppm (Stability) 10pF 4-Pin CSMD T/R
C16-35.328-8-1530-X-R Aker Technology 石英晶體 Crystal 35.328MHz ±15ppm (Tol) ±30ppm (Stability) 8pF 4-Pin CSMD T/R
C16-50.000-12-1520-R Aker Technology 石英晶體 Crystal 50MHz ±15ppm (Tol) ±20ppm (Stability) 12pF 4-Pin CSMD T/R
C16-50.000-10-1530-X-R Aker Technology 石英晶體 Crystal 50MHz ±15ppm (Tol) ±30ppm (Stability) 10pF 4-Pin CSMD T/R
C16-54.240-8-1520-R Aker Technology 石英晶體 Crystal 54.24MHz ±15ppm (Tol) ±20ppm (Stability) 8pF 4-Pin CSMD T/R
C16-37.400-12-1530-X-R Aker Technology 石英晶體 Crystal 37.4MHz ±15ppm (Tol) ±30ppm (Stability) 12pF 4-Pin CSMD T/R
C16-30.000-8-1520-R Aker Technology 石英晶體 Crystal 30MHz ±15ppm (Tol) ±20ppm (Stability) 8pF 4-Pin CSMD T/R
C16-31.250-10-1530-X-R Aker Technology 石英晶體 Crystal 31.25MHz ±15ppm (Tol) ±30ppm (Stability) 10pF 4-Pin CSMD T/R
C16-31.250-8-1520-R Aker Technology 石英晶體 Crystal 31.25MHz ±15ppm (Tol) ±20ppm (Stability) 8pF 4-Pin CSMD T/R
C16-31.250-12-1520-R Aker Technology 石英晶體 Crystal 31.25MHz ±15ppm (Tol) ±20ppm (Stability) 12pF 4-Pin CSMD T/R
C16-26.000-8-1530-X-R Aker Technology 石英晶體 Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 8pF 4-Pin CSMD T/R
C16-26.000-12-1530-X-R Aker Technology 石英晶體 Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 12pF 4-Pin CSMD T/R
C16-26.000-10-1520-R Aker Technology 石英晶體 Crystal 26MHz ±15ppm (Tol) ±20ppm (Stability) 10pF 4-Pin CSMD T/R
C16-35.328-8-1520-R Aker Technology 石英晶體 Crystal 35.328MHz ±15ppm (Tol) ±20ppm (Stability) 8pF 4-Pin CSMD T/R
C16-48.000-8-1530-X-R Aker Technology 石英晶體 Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 8pF 4-Pin CSMD T/R
C16-48.000-10-1520-R Aker Technology 石英晶體 Crystal 48MHz ±15ppm (Tol) ±20ppm (Stability) 10pF 4-Pin CSMD T/R
C16-35.328-12-1520-R Aker Technology 石英晶體 Crystal 35.328MHz ±15ppm (Tol) ±20ppm (Stability) 12pF 4-Pin CSMD T/R
C16-35.328-10-1530-X-R Aker Technology 石英晶體 Crystal 35.328MHz ±15ppm (Tol) ±30ppm (Stability) 10pF 4-Pin CSMD T/R
C16-48.000-12-1530-X-R Aker Technology 石英晶體 Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 12pF 4-Pin CSMD T/R
Aker音叉晶體CTS3-32.768-9-20-R為何開創新的精度標準?32.768kHz頻率的手表晶體比較容易生產。內置于手表中，其原始頻率使用所謂的T觸發器或波紋計數器進行分割。每個T觸發器可以將石英的頻率減半。如果15個這樣的觸發器串聯，32.768KHz的輸出頻率正好等于1赫茲。因此，經典音叉晶體的頻率最終是簡單的算術運算和石英生產的一般條件的結果。
